ELECTRIC INSULATION COATING
INSULECT SK-03
INSULECT SK-03 is a composite electric insulation coating designed to impart high electric strength for various electrical applications. It’s film helps to avert the leakage currents, resulting into reduction in contamination flashovers.
Performance features :
- High DI-Electric strength 122 kV/mm
- Excellent puncture resistant
- Prevents flashovers due to tracking & leakage current
- Excellent resistance to UV radiation (suitable for outdoor Exposure)
- Excellent resistance to transformer oil
- Resistance to Fire (add on property)
- Tough and Scratch resistant
Product features :
- Single pack ready to use system
- Fast drying at room temperature – 30 min. to touch dry
- Self-priming- no need of any kind of primer
- Available in all desired colour shades
- Easy rectification and touch up
Applications :
- Busbar in control panels
- Electric poles & cross arms

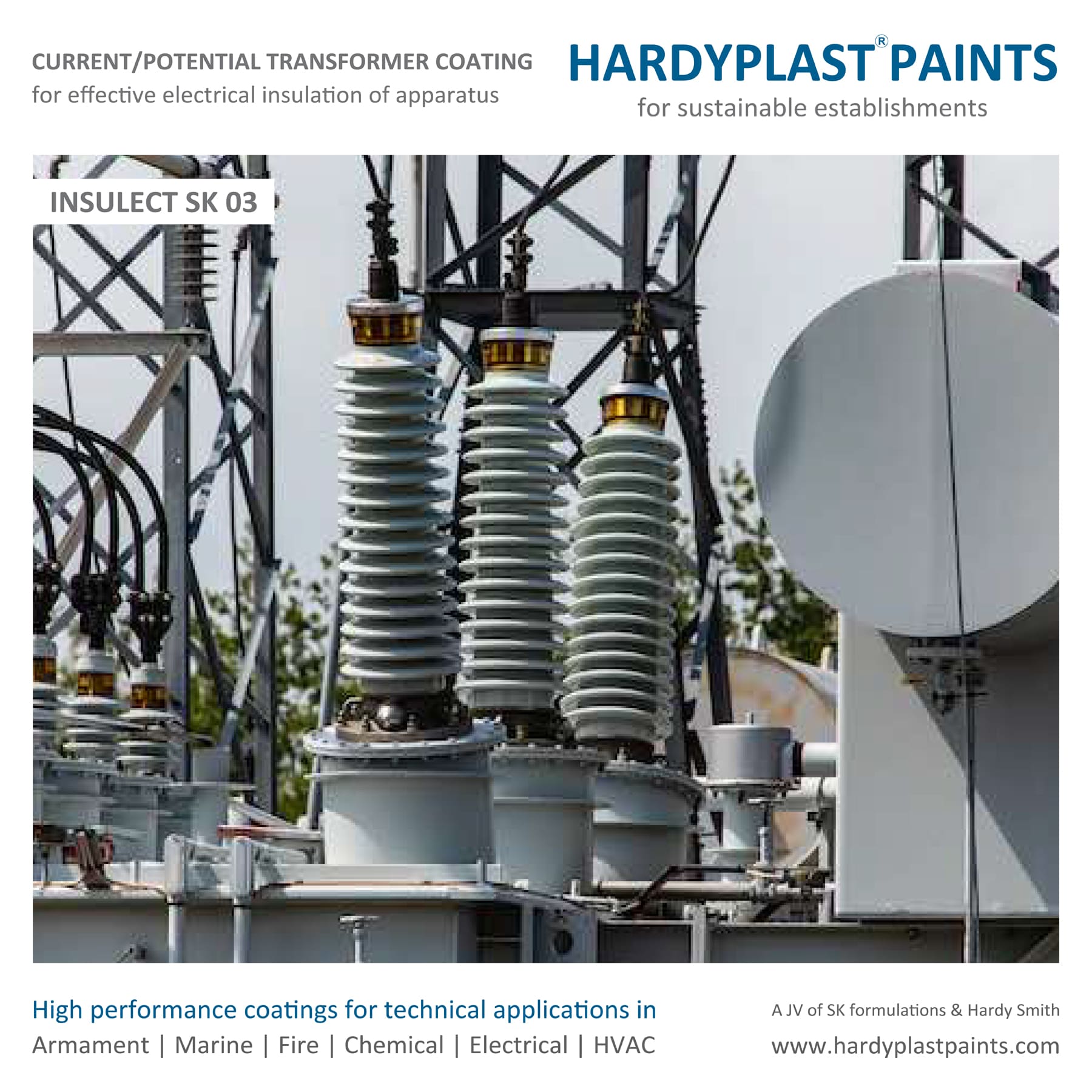

- Ceramic Insulators

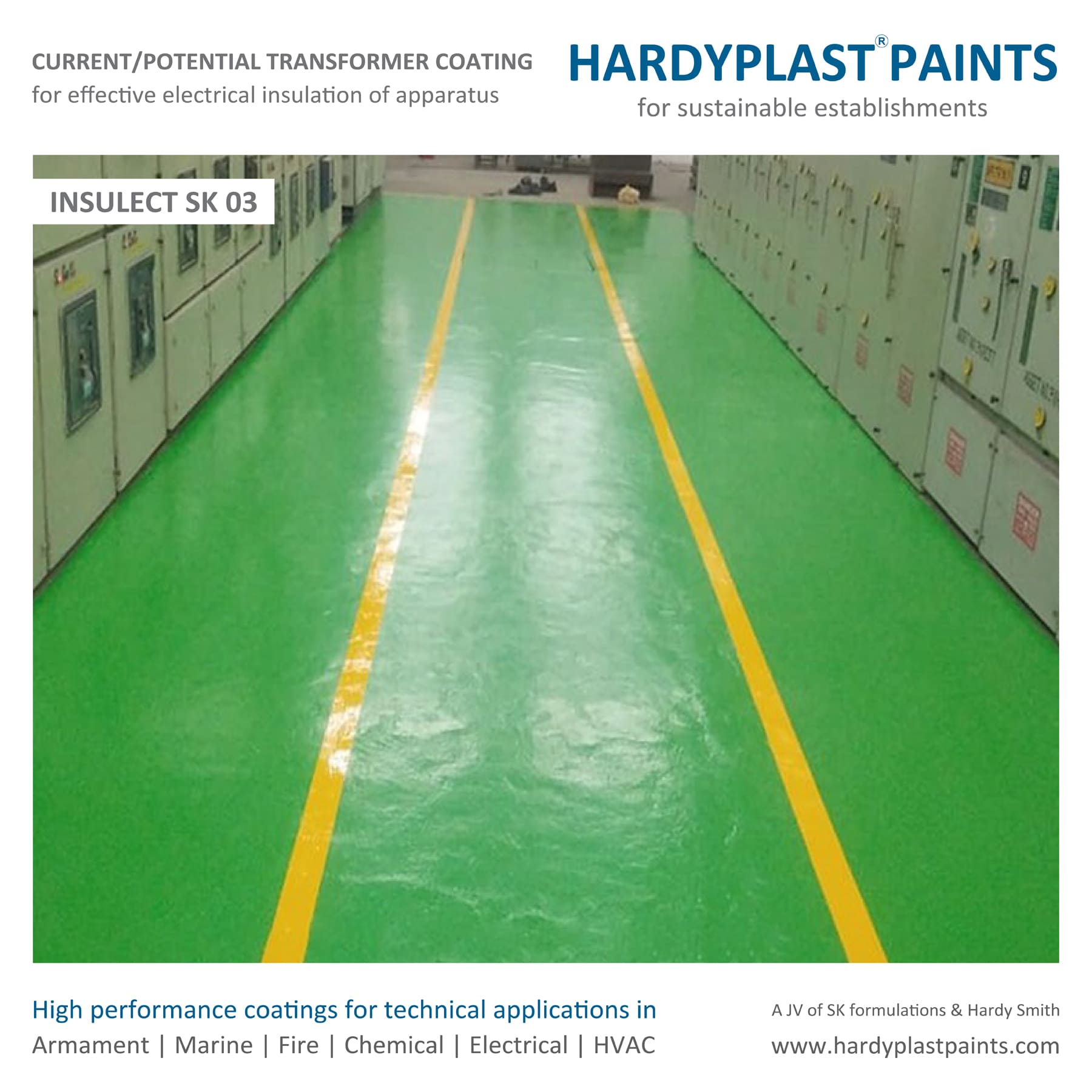

- In front of control panel- Replacement of rubber mats
- Any current carrying conductors

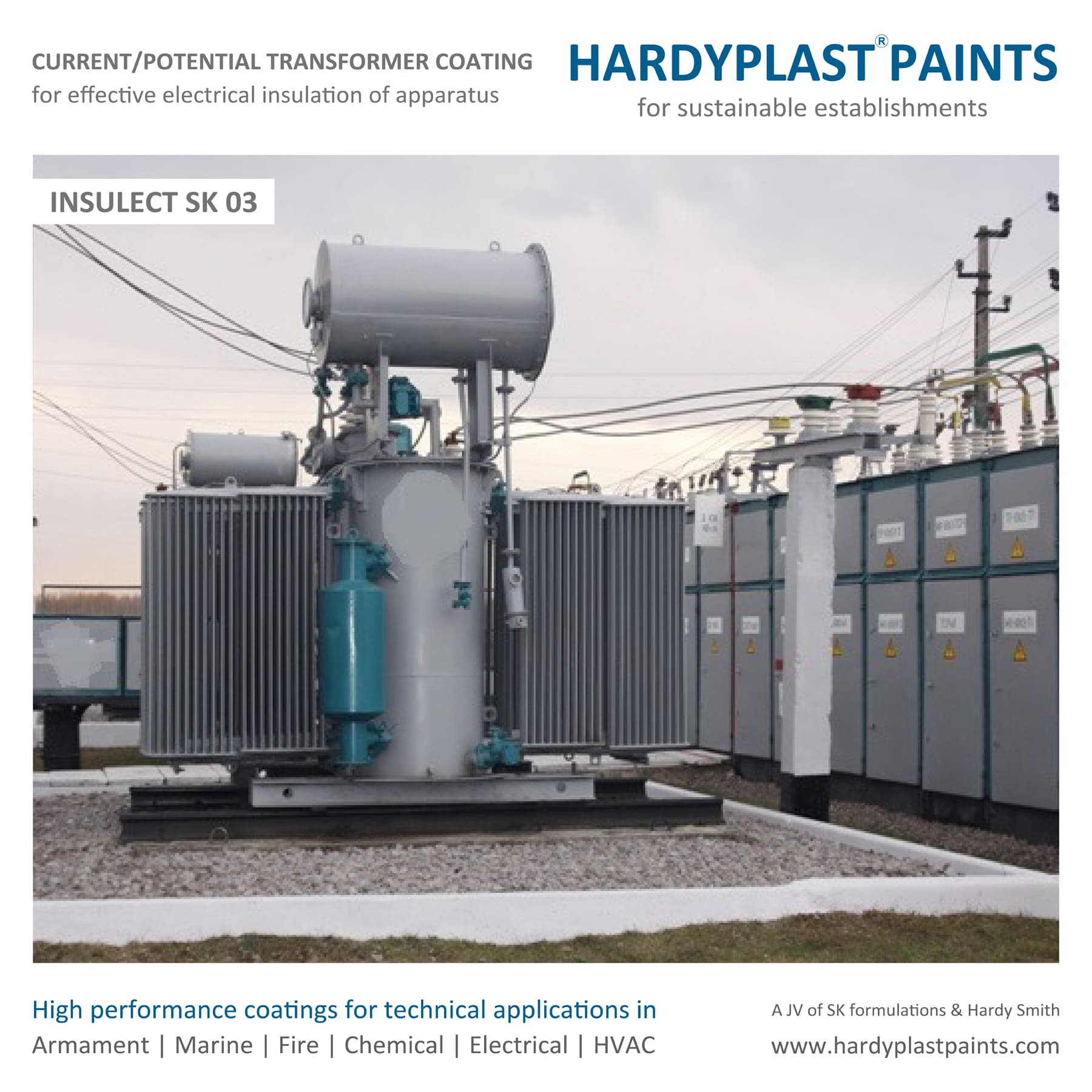

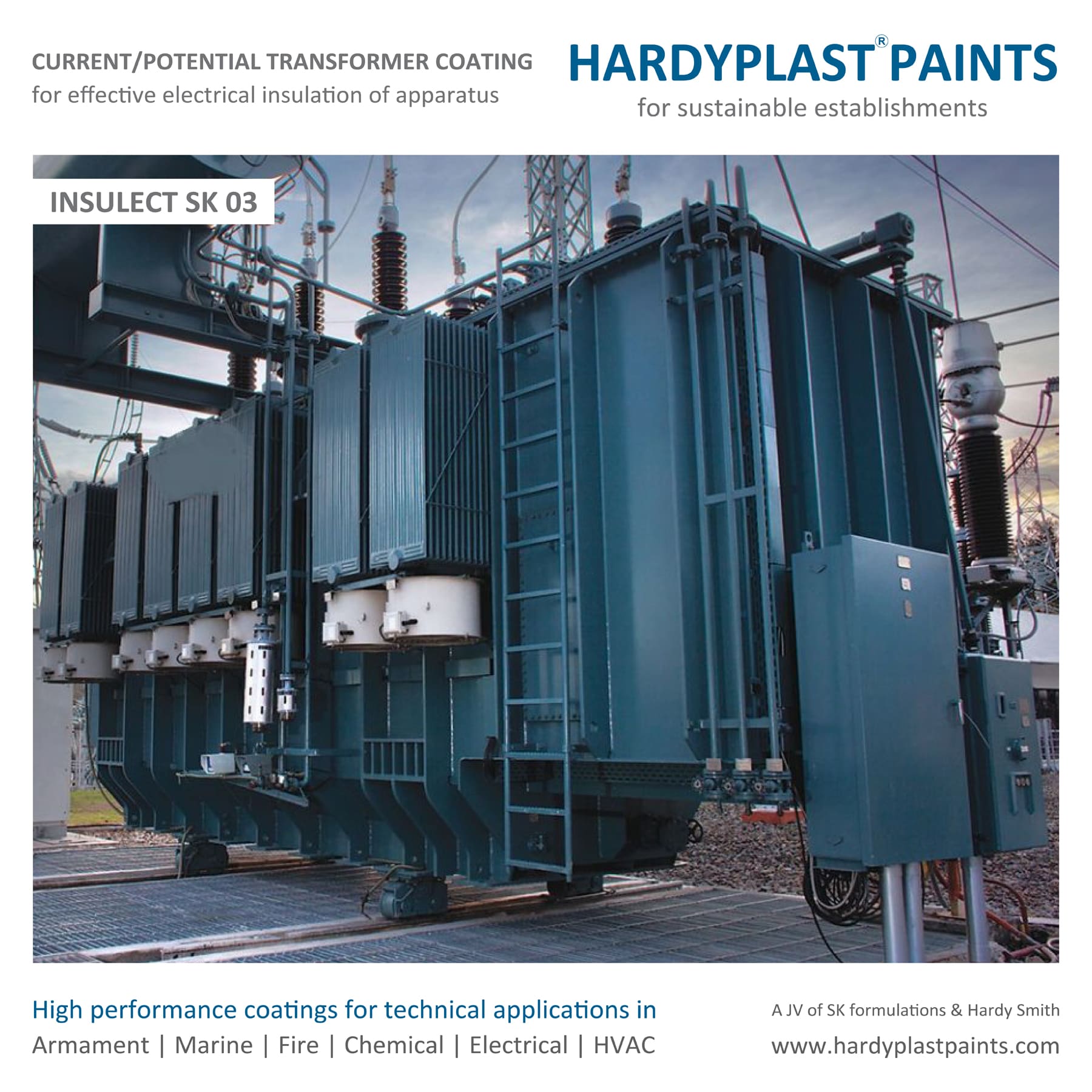

- Current transformers (CT) & Potential transformer (PT)
- Pantograph
